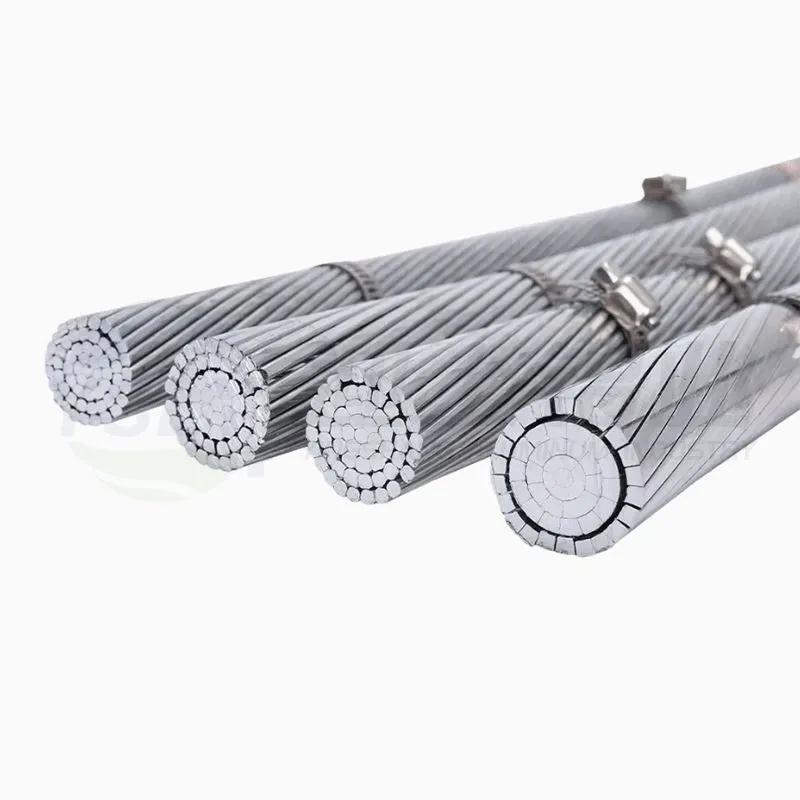

Overhead power lines are the lifelines of modern electricity distribution and transmission systems. Among the most common types of conductors used are AAC (All Aluminum Conductor) and ACSR (Aluminum Conductor Steel Reinforced). Both types of conductors serve critical functions, but their applications, mechanical characteristics, and electrical performance differ significantly.
AAC conductors are composed entirely of aluminum strands. They are lightweight, corrosion-resistant, and highly conductive. AAC is predominantly used in low- to medium-voltage distribution lines in urban and suburban areas. Its simplicity, lower cost, and ease of installation make it a popular choice for short spans and moderate load requirements. However, AAC has lower tensile strength compared to ACSR and may not be suitable for long spans or areas prone to heavy mechanical stress or adverse weather conditions.
ACSR conductors, on the other hand, are a combination of aluminum and a central steel core. The steel core provides enhanced mechanical strength, allowing ACSR to withstand longer spans, heavier loads, and more extreme environmental stresses such as high winds, ice loading, and mechanical tension. While ACSR has slightly higher resistive losses than AAC, its robustness makes it the preferred choice for high-voltage transmission lines and long-distance power distribution.
Overhead conductors are the physical pathways through which electric power travels from generation stations to consumers. They play a pivotal role in the electrical grid, influencing efficiency, reliability, and operational safety. Selecting the appropriate type of conductor is one of the first and most critical decisions in the design of power transmission and distribution systems. Among these conductors, All Aluminum Conductor (AAC) and Aluminum Conductor Steel Reinforced (ACSR) are two of the most commonly used options.
Overhead conductors are typically strung across poles or towers and are designed to transport electric current over long distances. Unlike underground cables, overhead conductors are exposed to environmental conditions, including wind, rain, ice, temperature variations, and mechanical stress. Therefore, their design must address not only electrical efficiency but also mechanical durability and resistance to environmental degradation.
Conductors are categorized based on material composition, tensile strength, electrical conductivity, and environmental suitability. AAC and ACSR fall into the category of aluminum-based conductors, chosen for their high conductivity, light weight, and cost-effectiveness.
AAC is composed entirely of aluminum strands twisted together to form a flexible yet conductive cable. Key characteristics include:
High conductivity: Aluminum is an excellent conductor, allowing AAC to efficiently carry electrical current with minimal energy loss.
Corrosion resistance: Aluminum forms a natural oxide layer that protects it from environmental corrosion.
Lightweight: AAC is significantly lighter than ACSR, reducing the mechanical load on poles and towers.
Ease of installation: Its flexibility and low weight simplify installation, especially in urban areas with short spans.
However, AAC has limitations in tensile strength, which restrict its use in long spans or areas with heavy mechanical stress.

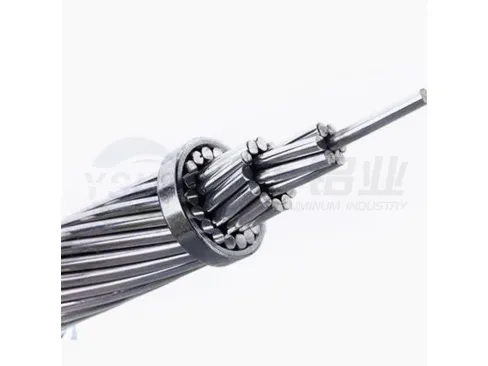

ACSR combines aluminum and steel to enhance mechanical performance. It consists of aluminum strands wrapped around a steel core, which provides tensile strength while the aluminum carries the bulk of the electrical current. Key features include:
High mechanical strength: The steel core allows ACSR to handle long spans, high wind loads, and ice accumulation.
Moderate conductivity: While slightly lower than AAC due to the steel core, ACSR remains highly effective for power transmission.
Environmental resilience: ACSR withstands harsh weather and mechanical stress, making it suitable for transmission across varied terrains.
ACSR is widely used in high-voltage transmission and long-distance distribution where mechanical performance is critical.
| Feature | AAC | ACSR |
|---|---|---|
| Material | 100% Aluminum | Aluminum strands + Steel core |
| Conductivity | High | Slightly lower than AAC |
| Weight | Lightweight | Heavier due to steel core |
| Tensile Strength | Low | High |
| Span Length | Short to medium | Long spans |
| Cost | Lower | Higher due to steel core |
| Applications | Urban distribution | Transmission, rural and long-distance distribution |
Selecting the correct conductor impacts efficiency, reliability, safety, and cost. Using AAC where high mechanical strength is needed may result in sagging, conductor breakage, or system downtime. Conversely, using ACSR where lightweight conductors suffice can unnecessarily increase project costs.
Understanding both electrical and mechanical characteristics, environmental considerations, and regulatory requirements is essential for effective conductor selection. This ensures reliable energy delivery, reduced maintenance costs, and optimized long-term performance.
The choice between AAC and ACSR depends on a combination of electrical, mechanical, environmental, and economic factors. AAC is ideal for lightweight, low-stress applications, while ACSR is designed for demanding environments requiring enhanced strength. The chapters that follow will delve deeper into their construction, properties, standards, applications, and decision-making strategies, providing a practical framework for engineers and decision-makers in the electrical industry.
To effectively choose between AAC (All Aluminum Conductor) and ACSR (Aluminum Conductor Steel Reinforced), it is crucial to understand the fundamental principles of electrical conductors. Conductors are more than just wires—they are engineered systems designed to efficiently carry electrical current over distances, while enduring mechanical stress and environmental challenges.
Electrical conductivity is the ability of a material to allow the flow of electric current. It is primarily determined by the material's atomic structure, which affects the movement of electrons.
Aluminum：
Aluminum has a conductivity of approximately 61% of copper, making it a highly effective conductor for power distribution. Its low density (approximately 2.7 g/cm³) gives it a weight advantage over copper, which is important for overhead lines.
Steel：
Steel, used in the core of ACSR, has much lower conductivity, around 10% of copper. However, steel's main role in ACSR is mechanical, not electrical. The aluminum strands surrounding the steel core carry the bulk of the current.
Key takeaway: The choice of conductor material affects energy efficiency, line losses, and heating, which directly impact operational costs and reliability.
All conductors have electrical resistance, which causes energy loss in the form of heat. Resistance depends on：
Material properties – Aluminum has higher resistivity than copper but is lighter.
Cross-sectional area – Larger conductor diameters reduce resistance.
Temperature – Resistance increases with temperature. For aluminum, the resistivity increases approximately 0.00403 per °C.
Formula for resistance (R):
R=AρL
Where
= resistivity (Ω·m)
= conductor length (m)
= cross-sectional area (m²)
Resistance directly affects thermal limits, voltage regulation, and energy efficiency, making it a critical factor when comparing AAC and ACSR.
Mechanical properties determine how conductors perform under tension, weight, and environmental forces.
Tensile Strength:
AAC: Approximately 90–120 MPa, sufficient for short spans.
ACSR: Tensile strength varies depending on the steel core, typically 300–800 MPa, enabling long-span installations.
Sag and Tension:
Conductors experience sag due to their weight and temperature changes. Excessive sag can compromise clearance from the ground, vegetation, or structures.
ACSR's steel core reduces sag, making it suitable for rivers, highways, and mountainous terrain.
Creep：
Over time, conductors stretch under constant tension. Aluminum shows more creep than steel, which is why ACSR conductors rely on steel to maintain long-term tension stability.
Key takeaway: Mechanical considerations are as important as electrical performance. AAC is ideal for low-stress urban distribution, while ACSR is designed for high-stress, long-distance transmission.
Understanding the basic principles of electrical conductors is essential for choosing between AAC and ACSR. Key factors include:
Electrical conductivity and resistive losses
Tensile strength, sag, and creep
Thermal behavior and ampacity
Environmental exposure and corrosion
Stranding design and mechanical flexibility
AAC is optimal for urban distribution and low-stress applications, while ACSR excels in high-voltage, long-distance, and mechanically demanding installations. A thorough grasp of these principles ensures that engineers can make informed, efficient, and cost-effective design choices.
