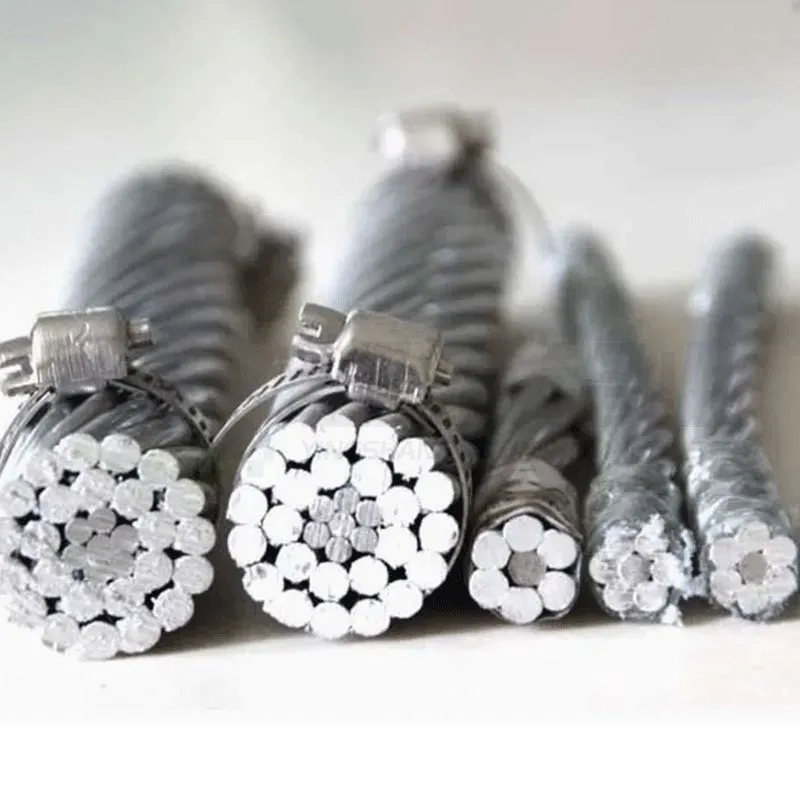

When it comes to overhead power transmission and distribution, choosing the right type of conductor is crucial. Two commonly used conductors are AAC (All Aluminum Conductor) and AAAC (All Aluminum Alloy Conductor). While both are aluminum-based and widely utilized in electrical systems, they differ significantly in terms of materials, strength, and applications. Understanding these differences helps engineers, contractors, and utility companies make informed decisions for efficient and long-lasting power infrastructure.

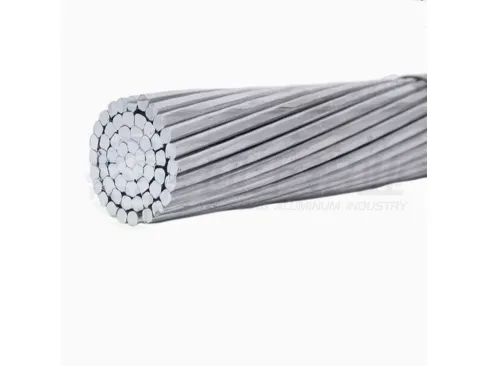

AAC stands for All Aluminum Conductor. As the name suggests, it is composed entirely of pure aluminum without any alloying materials. Its main advantage lies in its lightweight nature and excellent electrical conductivity.
AAC is made by twisting multiple strands of high-purity aluminum. It is soft, highly conductive, and easy to handle. The purity of aluminum typically exceeds 99%.
AAC is mainly used for:
Low to medium voltage power distribution
Short distance transmission lines
Urban and residential overhead networks
AAC Bare Conductor: Used in standard overhead power lines.

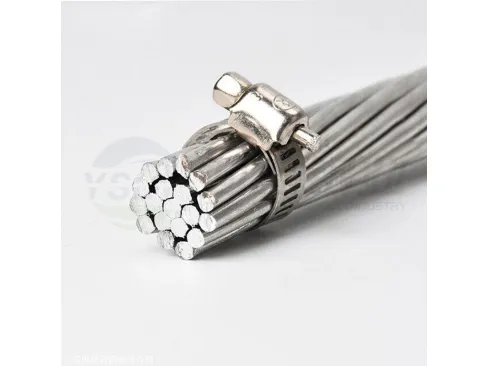

AAC Aluminum Stranded: Offers more flexibility and easier installation in complex networks.

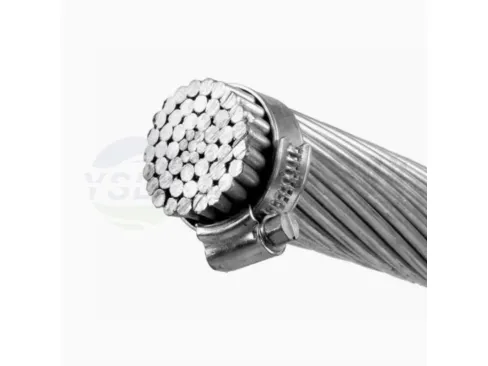

AAAC stands for All Aluminum Alloy Conductor. Unlike AAC, AAAC uses aluminum alloys which incorporate small amounts of other metals to improve mechanical strength and corrosion resistance.
AAAC consists of multiple strands of aluminum alloy, usually with magnesium, silicon, or other elements, making it stronger and more resilient under tension.
AAAC is preferred for:
Medium to high voltage lines
Long-span overhead transmission
Areas prone to corrosion such as coastal or industrial environments
AAAC Standard Grade: Suitable for general applications with moderate mechanical demands.
AAAC High-Strength Grade: Ideal for high-tension lines and areas with harsh environmental conditions.
| Feature | AAC | AAAC |
|---|---|---|
| Material Composition | Pure aluminum | Aluminum alloy |
| Strength & Durability | Lower mechanical strength | Higher mechanical strength |
| Electrical Conductivity | Excellent | Slightly lower due to alloying |
| Corrosion Resistance | Moderate | High |
| Weight | Lighter | Slightly heavier |
| Cost | Lower | Higher |
AAAC outperforms AAC in tensile strength, making it suitable for long-span transmission and high-stress areas.
While both conductors offer good conductivity, AAC has slightly higher electrical conductivity due to pure aluminum. AAAC trades some conductivity for strength and durability.
AAAC generally requires less maintenance in corrosive environments, ensuring a longer operational lifespan.
AAC: Best for inland, low-corrosion areas.
AAAC: Ideal for coastal, industrial, and urban areas where corrosion is a concern.
Coastal regions: AAAC resists salt corrosion better.
Industrial areas: AAAC withstands acidic and polluted atmospheres.
Urban installations: AAAC handles mechanical stress better due to alloy reinforcement.
Handling and Flexibility: AAC is softer and easier to manipulate, while AAAC requires more care due to its hardness.
Tension and Sag Characteristics: AAAC maintains lower sag under high tension.
Compatibility with Hardware: AAAC may require specific clamps and connectors designed for alloy conductors.
Initial Cost: AAC is cheaper upfront.
Maintenance Savings: AAAC reduces long-term replacement costs in harsh environments.
ROI: AAAC can offer better returns in corrosive or high-tension applications despite higher initial costs.
Lightweight and easy to install
Cost-effective for short-distance distribution
Excellent electrical conductivity
Superior corrosion resistance
High mechanical strength
Long lifespan in harsh environments
Lower tensile strength
Susceptible to corrosion in industrial or coastal areas
Higher initial cost
Slightly heavier than AAC, requiring stronger support structures
Residential Power Distribution: AAC commonly used in small residential networks.
Transmission Lines: AAAC preferred for long-span high-voltage lines.
Urban and Rural Networks: AAAC used in areas exposed to environmental stress, while AAC is sufficient in protected areas.
When selecting a conductor:
Consider the environment (coastal, industrial, rural)
Evaluate load requirements and line length
Factor in budget and long-term maintenance costs
Determine installation constraints like tension and sag
Hybrid Materials: Combining aluminum with other lightweight alloys
High-Strength Lightweight Conductors: Reducing sag and increasing span length
Sustainability: Focus on recyclable and eco-friendly materials
Both AAC and AAAC are vital in modern electrical systems, but choosing the right one depends on the application, environment, and budget. AAC is perfect for low-tension, inland applications where cost is a major factor. AAAC, on the other hand, excels in strength, corrosion resistance, and durability, making it ideal for harsh and long-span environments. By understanding the differences, you can optimize performance, reduce maintenance, and ensure reliable electricity distribution.
Can AAC be used in coastal areas?
It can, but it may corrode faster due to salt exposure. AAAC is preferred for coastal environments.
Why is AAAC more expensive than AAC?
AAAC uses aluminum alloys which improve strength and corrosion resistance, increasing production costs.
Which conductor has higher current capacity?
AAC has slightly higher electrical conductivity, but AAAC balances conductivity with mechanical strength.
How does corrosion resistance differ between AAC and AAAC?
AAC is more prone to corrosion, while AAAC’s alloy composition provides superior resistance.
Are there hybrid alternatives to AAC and AAAC?
Yes, some new conductors combine aluminum with high-strength materials to reduce weight and improve durability.
